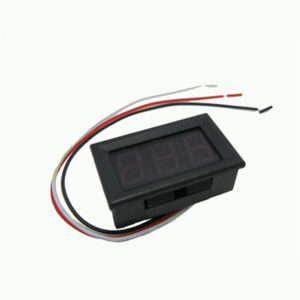

Three-wire DC voltage meter 0.56-inch LED digital voltmeter

CJJJJTJT01369 THREE-WIRE DC VOLTAGE METER 0.56-INCH LED DIGITAL VOLTMETER OVERVIEW

Three-wire DC voltage meter 0.56-inch LED digital voltmeter

High-Precision 0.56′ LED Digital Voltmeter 0-30V | Reverse Protection | Low Starting Voltage | Red/Green/Blue Display | Compact 48x29x22mm | ±1% Accuracy

Take advantage of the current discount and purchase this LED Voltmeter – High Precision today.

LED VOLTMETER – HIGH PRECISION PRODUCT FEATURES

●High precision

 ● Low starting voltage, red minimum 4.5V, green minimum 5.0V, blue minimum 5.0V.

 ●With reverse connection protection, it will not burn.

Technical Parameters:

 Measuring range 0.00V-30.0V

 Power supply range Red DC4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V

Highest input DC30.0V. Note: The input voltage is higher than 30V and may be permanently damaged!

Allowable error ±1%; the error is ±0.3V when it is greater than or equal to 10V; the error is ±0.10 when it is less than 10V

 Input resistance > 100K Europe

Working current Red < 23mA, green < 18mA, blue < 13mA

Refresh rate About 300mS once

 Display method Three 0.56′ LED digital tube

 Display color Red, green, blue optional

 Lead length 20cm

 Dimensions 48 x 29 x 22 mm, length X width X thickness;

 Mounting holes 46 x 27 mm

 Operating temperature -10°C~65°C

RELATED HOME, GARDEN & PETS ITEMS

• CJJT1455421 Natural Citrine Flower Original Stone Aromatherapy Degaussing
• CJJT1823526 Fashion Personality Christmas Stocking Hanging
• CJSJ1905692 Shopee Wish Lazada Joom Ebay KanyeHB Diabetic Patch
• CJJJJTJT22688 Three-dimensional blessing lantern pendant
• CJJJJTJT09513 Child safety lock
• CJJT1701036 Hand-made Square Wooden Board Base Ultra-light
• CJYD1880288 Halloween Tassel Pen Beaded Pen DIY Production Matching
• CJJJJTCF00714 Popsicle mold
• CJJT1627268 Handle Full Package Personalized Flower Sticker
• CJJT1687683 Chinese Simple Ceramic White Vase Ornaments

AVAILABLE CJJJJTJT01369 LED VOLTMETER – HIGH PRECISION VARIATIONS

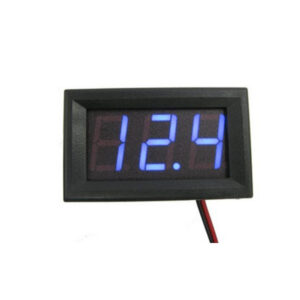

• CJJJJTJT01369-Blue Three-wire DC voltage meter 0.56-inch LED digital voltmeter

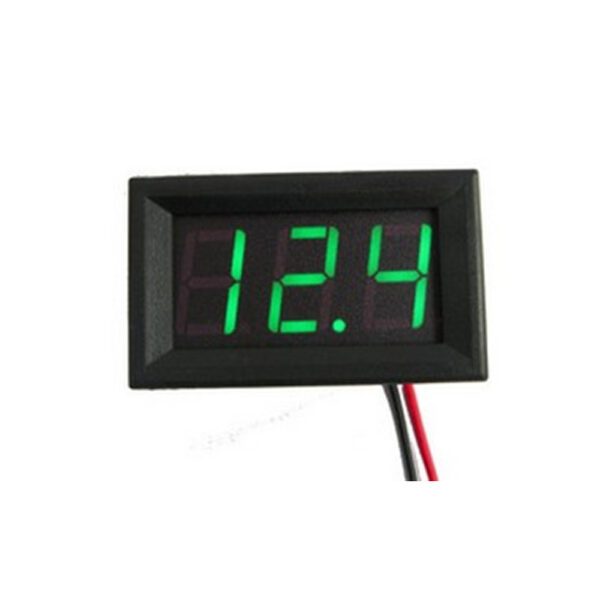

• CJJJJTJT01369-Green Three-wire DC voltage meter 0.56-inch LED digital voltmeter
• CJJJJTJT01369-Red Three-wire DC voltage meter 0.56-inch LED digital voltmeter

HELPFUL LINKS & RESOURCES

• Browse the Home, Garden & Pets Category
• Search for a similar LED Voltmeter – High Precision in Amazon

FREQUENTLY ASKED QUESTIONS ABOUT LED VOLTMETER – HIGH PRECISION

What are the key features of the LED Voltmeter – High Precision?

– The LED voltmeter boasts a high-precision 0.56′ digital display, low starting voltage, reverse connection protection, and a measuring range of 0.00V-30.0V. It comes in red, green, or blue display colors and has compact dimensions of 48 x 29 x 22 mm.

What is the allowable error rate of the LED Voltmeter – High Precision?

– The LED voltmeter has an allowable error rate of ±1%, ensuring accurate voltage readings within its measuring range of 0.00V-30.0V.

How does the reverse connection protection feature benefit users of the LED Voltmeter – High Precision?

– The reverse connection protection feature helps prevent damage to the voltmeter and the circuit it is measuring by safeguarding against incorrect polarity connections.

What are the available display color options for the LED Voltmeter – High Precision?

– The LED voltmeter is available in red, green, or blue display colors, allowing users to choose the color that best suits their preferences or visibility needs.

Can the LED Voltmeter – High Precision accurately measure voltages below 1V?

– Yes, the LED voltmeter has a low starting voltage and can accurately measure voltages as low as 0.00V, making it suitable for a wide range of electronic applications.

How compact is the design of the LED Voltmeter – High Precision?

– The LED voltmeter features a compact design with dimensions of 48 x 29 x 22 mm, making it easy to integrate into various projects or installations where space is limited.
